T3100N1
A lightweight, single ply, neoprene (CR) coated glass fibre fabric ducting. Unlined neoprene ducting is a suitable alternative to lined neoprene ducting (T3150B) when working...
Working pressures up to: 1 bar
Temp range: -55℃ to 150℃
T6100
T6100 PTFE Lined Hose Assemblies; rated up to 241 bar (3494 psi), have a temperature range of -60°c to +260°c and offer high flow rates are designed for fluid transfer...
Working pressures up to: 241 bar
Temp range: -60℃ to 260℃
T6105
T6105 FDA PTFE Lined Hose Assemblies, rated ot 276 bar (4002 psi) and a temperature range of -60°c to +260°c, are primarily used for the conveyance of fluid transfer on...
Working pressures up to: 276 bar
Temp range: -60℃ to 260℃
T6110
T6110 FDA Antistatic PTFE Hose Assemblies are smoothbore with a Monarch 4750 FDA 21 CFR 178.3297 anti-static carbon compound & 304 SS overbraid. Best suited for fluid, gas...
Working pressures up to: 241 bar
Temp range: -60℃ to 260℃
T6115
T6115 Antistatic PTFE Fuel Hose Assemblies are smoothbore with two 304 stainless steel overbraids. Best suited for the transfer of hydrocarbons, fuels, oil, diesel &...
Working pressures up to: 276 bar
Temp range: -60℃ to 260℃
T6130
T6130 Heavy Wall PTFE Hose is manufactured from an FDA 21 CFR 177.1550 smoothbore virgin PTFE liner & reinforced with a 304 SS overbraid. This pharmaceutical fluid transfer...
Working pressures up to: 321 bar
Temp range: -60℃ to 260℃
T6135
T6135 Heavy Wall Antistatic PTFE Hose is manufactured from an FDA 21 CFR 177.1550 non-conductive smoothbore virgin PTFE & is mixed with a Monarch 4750 FDA 21 CFR 178.3287...
Working pressures up to: 321 bar
Temp range: -60℃ to 260℃
T6140
T6140 PTFE Braided Gas Hose Assemblies have a smoothbore double sintered, low permeability, heavy wall FDA 21 CFR 177.1550 virgin PTFE liner. Reinforced with a 304 SS braid. This...
Working pressures up to: 207 bar
Temp range: -60℃ to 260℃
T6145
PTFE Lined High Pressure Gas Hose Assemblies have a smoothbore double sintered, low permeability, heavy wall FDA 21 CFR 177.1550 virgin PTFE liner. Reinforced with two 304 SS...
Working pressures up to: 350 bar
Temp range: -60℃ to 260℃
T6150
T6150 Kevlar Braided High Pressure PTFE Charging Hose Assemblies have a smoothbore double sintered, low permeability, heavy wall. Has an additional 304 SS braid enabling...
Working pressures up to: 552 bar
Temp range: -60℃ to 260℃
T6160
T6160 350 bar Antistatic PTFE Hose Assemblies have a smoothbore heavy wall, low permeability liner with a special 304 SS bunch braid. Applictions include; skydrol, saturated steam...
Working pressures up to: 350 bar
Temp range: -60℃ to 260℃

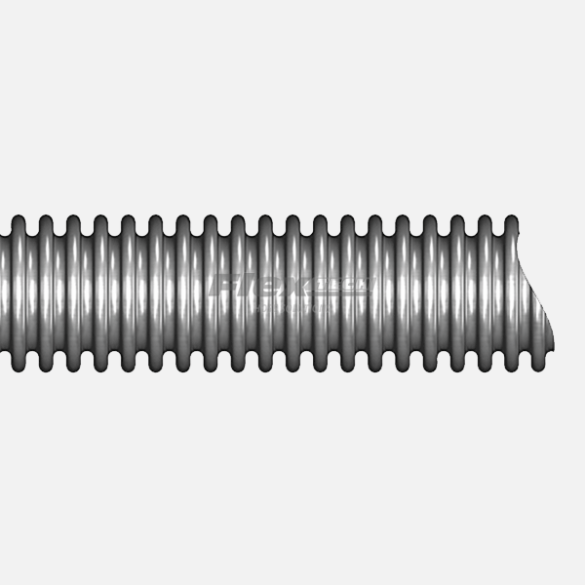

T7010
A low pressure, standard pitch metallic hose. Standard sizes range between 6mm to 200mm but are also available up to 450mm. Suitable for up to 8,000 flexing cycles.
Working pressures up to: 12 bar
Temp range: -200℃ to 600℃
T7011
A medium pressure standard pitch metallic hose. Standard sizes range between 6mm to 200mm but are also available up to 450mm. Suitable for up to 8,000 flexing cycles.
Working pressures up to: 120 bar
Temp range: -200℃ to 600℃
T7012
A medium pressure, standard pitch metallic hose. Standard sizes range between 6mm to 200mm but are also available up to 450mm. Suitable for up to 8,000 flexing cycles.
Working pressures up to: 192 bar
Temp range: -200℃ to 600℃
